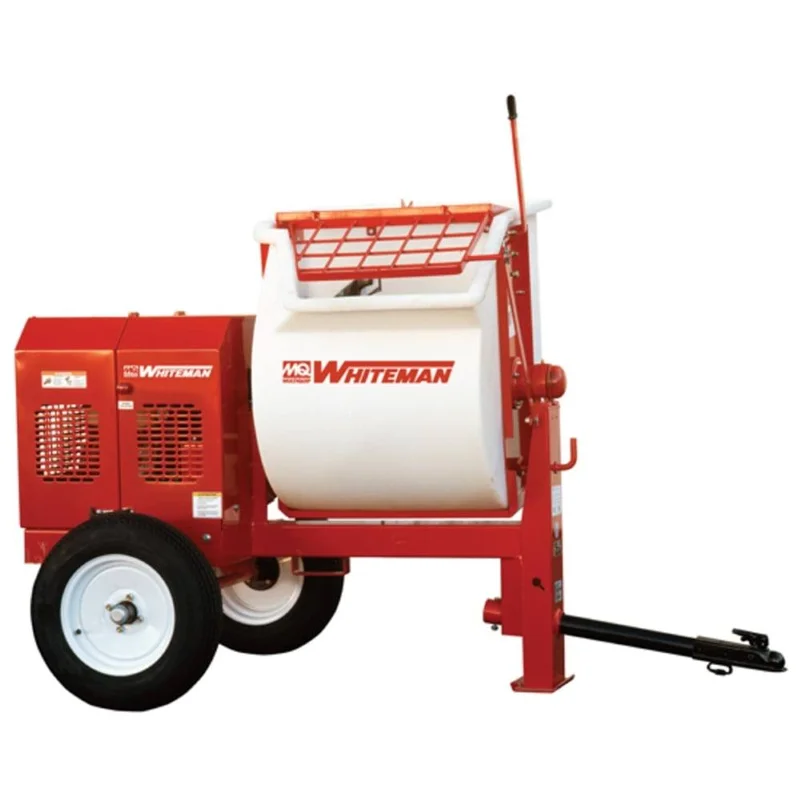

Multiquip WM90PE Poly Drum Mortar Mixer 3HP 230V Baldor

Description

Multiquip WM90PE Poly Drum Mortar Mixer 3HP 230V Baldor

The
Multiquip WM90PE is a high-capacity, heavy-duty portable mixer designed for maximum production on the largest professional plastering, stucco, and masonry projects.

This machine features a massive working capacity of
9.0 cubic feet (255 L), making it ideal for continuous, large-batch mixing to support high-volume crews. It is powered by a robust
3.0 HP electric motor (typically operating on dual voltage 230V/460V three-phase power), providing clean, quiet, and fume-free operation with consistent, high torque.

 The unit is equipped with a
tough polyethylene (poly) drum, which is rust-proof, non-corroding, and excellent for mixing abrasive materials like plaster and stucco with hassle-free cleanup. Built on a super strong, towable frame, the WM90PE is engineered for job site durability, ensuring reliable, high-output performance job after job.

Tow Bar Included

Features:

Mixes up to 9-cubic feet (248 liters) of material

• Features a large working capacity, mixing up to 9 cubic feet (248 liters) of material per batch.

Strong cast bull gears and pulleys

• Equipped with strong, cast components (bull gears and pulleys) that ensure reliable, heavy-duty power transmission.

EasyClean polyethylene drum

• Features an EasyClean polyethylene drum, allowing for hassle-free cleanup and simplifying maintenance.

Heavy-duty safety grate with built-in bag cutter

• Features a heavy-duty safety grate built for durability, which conveniently includes an integrated bag cutter for quick material loading.

Schedule-80 steel removable tow tongue

• Equipped with a rugged Schedule 80 steel tow tongue that is easily removable for convenient storage and protection.

Unit Specifications

• Drive System V-belt
• Drum Capacity 9 cu. ft
• 254.9 L
• 2 1/2 – 3 1/2 bags
• Dump Type Manual
• Discharge Height 21 in 530 mm
• Drum Type Poly
• Drum Wrap Thickness 10
• Engine Cover Thickness 14
• Tire Size B78x13
• Frame Type Tubular
• Paint Type Powder coat
• Power Source Baldor 3.0 HP 1 Ph 230V Electric

Dimensions & Weights

• Overall Length 98 in 2489 mm
• Overall Width 50 in 1270 mm
• Overall Height 59 in 1498.6 mm
• Overall Height
• w/Dump Handle 77 in 1960 mm
• Operating Weight 770 lb 349.2 kg
