Description

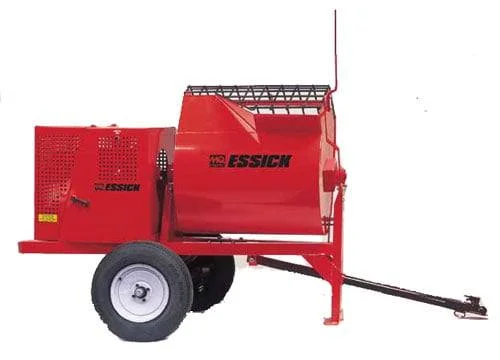

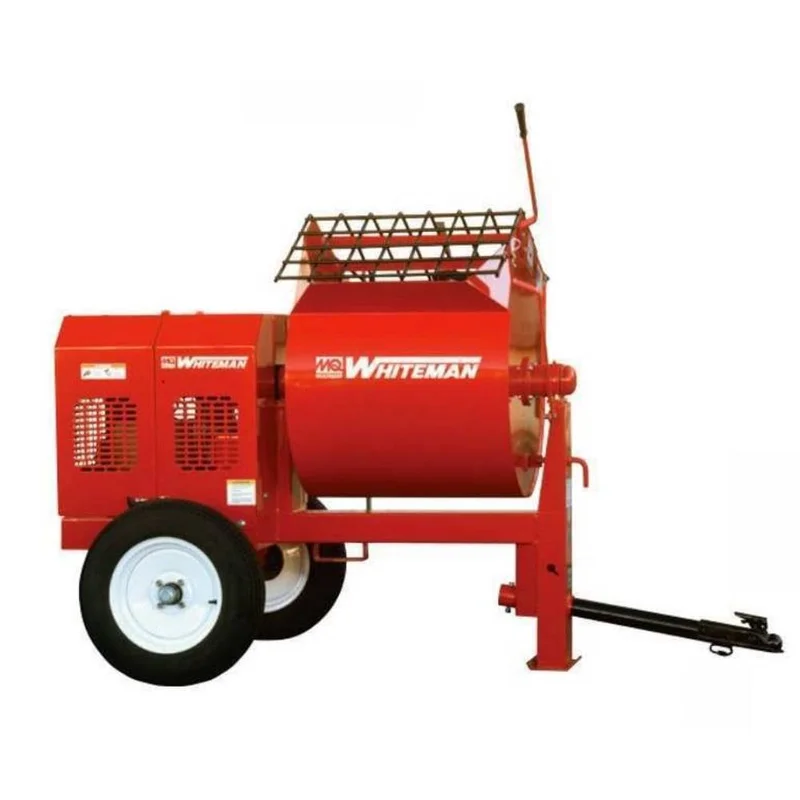

Multiquip EM120SME53
Tow Bar Included.
- Mixes larger, stiffer loads with ease
- 230/460V 3-phase electric-motor mixer
- Thick 3/16-inch (7 mm) steel drum wrap
- Capacity is 12 cubic feet (340 liters) of material
- Solid steel axle with large B78x13 tires for smooth towing
- High tensile strength cast paddles arms
| Drive System | Mech. Gearbox | |
| Drum Capacity | 12 cu. ft 339.8 L 3 1/2 – 4 bags |
|
| Dump Type | Manual | |
| Discharge Height | 17 in | 430 mm |
| Drum Type | Steel | |
| Drum Wrap Thickness | 7 | |
| Engine Cover Thickness | 14 | |
| Tire Size | B78x13 | |
| Frame Type | A Frame | |
| Paint Type | Powder coat | |
| Power Source | 5 HP 3ø 230/460V Electric | |
| Notes:Heavy Duty Safety Chains included. All mixers availible with loop couper, 2″ ball coupler, or pin-type coupler. |
Dimensions & Weights
| Overall Length | 82 in | 2082.8 mm |
| Overall Width | 51 in | 1295.4 mm |
| Overall Height | 60 in | 1520 mm |
| Overall Height w/Dump Handle |
75 in | 1910 mm |
| Operating Weight | 1075 lb | 487.6 kg |
