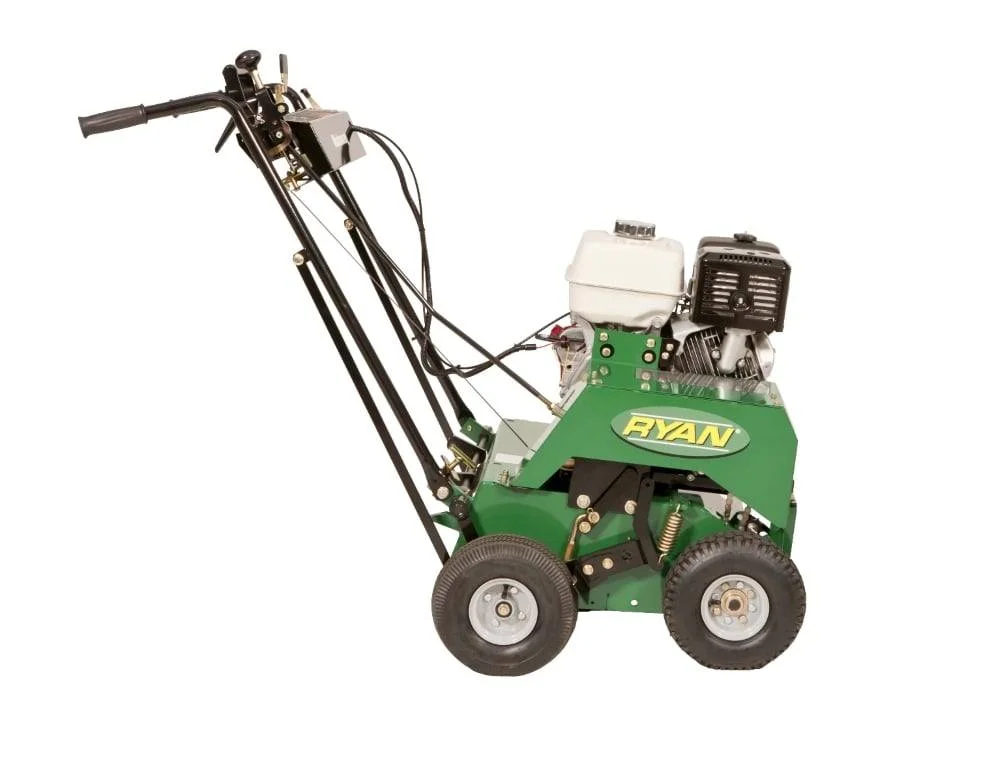

Ryan Mataway Dethatcher 544283D Honda GX390 Engine HD
Features:
- Easy blade changing
- Honda GX-390 11 HP engine
- Cover up to 18,700 suare feet per hour
- Self-propelled
- Independent drives allow easy loading and unloading
- Durable cutting blades
- User friendly controls
- Unit does not come with a blade
Specifications:
Power |
|
| Engine Model | 4-Cycle Honda GX390; recoil start; on/off switch; low-oil alert |
| Displacement | 23.7 cu in. (389 cc) |
| Fuel Capacity | 1.6 gal. (6.1 L) |
| Oil Capacity | 1.16 qt (1.1 L) |
Unit |
|
| Clutch | Spring-loaded belt tightener |
| Drive | 4L-section V-belt to front wheels by gear box and sealed roller chain; triple 3V-section V-belts engine to reel |
| Lubrication | Oil splash in gear case; pressure grease fittings elsewhere |
| Cutting Depth | Adjustable for any desired depth to 1.5 in. (38 mm) |
| Slicing Width | 19 in. (483 mm) |
| Front Tires | (2) 10.4 x 4.10-4, 2-ply pneumatic, knob tread |
| Rear Tires | (2) 10.25 x 4.10-4, 2-ply pneumatic, sawtooth tread |
| Productivity | 18700 sq ft/hr |
Optional Vertical Slicer/Dethacher reels |
|
| Flail Blade Type | 1/8 in. (3 mm) at 1 in. (25 mm) spacing |
| Fixed Blade Type |
1/32 in. (1 mm) at 1/2 in. (13 mm) spacing 1/32 in. (1 mm) at 1 in. (25 mm) spacing 1/16 in. (2 mm) at 1 in. (25 mm) spacing 1/16 in. (2 mm) at 1 1/2 in. (38 mm) spacing |
Dimensions |
|
| Weight: Wet Dethacher | 376 lb (171 kg) w/o reel |
| Width | 35.5 in. (902 mm) |
| Length | 50 in. (1,270 mm) |
| Height | 44 in. (1,118 mm) |
