Description

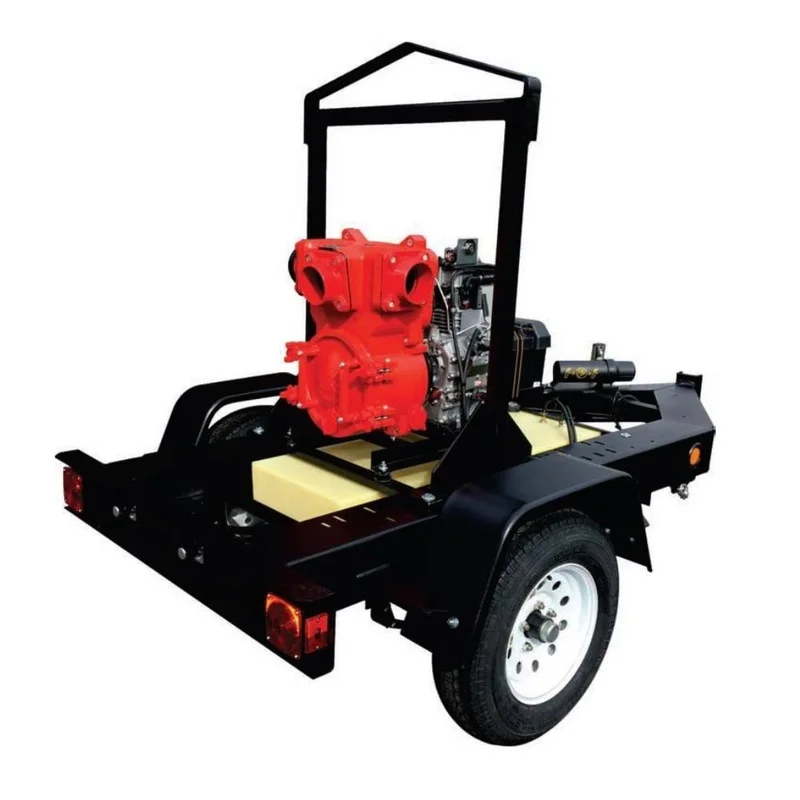

Multiquip QP4TK Trash Pump mounted on TRLR10P Trailer
Features :
- Rugged aluminum casings to promote fast priming times.
- DOT/NHTSA approved trailer – Made in the U.S.A.
- Industrial lifting bale.
- Powerful, EPA/CARB Certified 9.5HP KUBOTA diesel engine.
- Electric start for operating convenience.
- Engineered for 475 GPM flow rate.
- Maximum Head – 85′.
- Pumps water with solid content as large as 2″ in diameter.
- Dual 4″ discharge ports for operational and application flexibility.
- Silicon/carbon mechanical seal for durability.
- Large clean-out chamber design for efficient.
- #45 Ductile iron impeller and volute for abrasion resistance/long life.
- Shock mounted pump design to minimize operating harmonics.
Unit Specifications
- Suction x Discharge 4 x 4 in
- 102 x 102 mm
- Max. Water Capacity 475 gpm 2000 lpm
- Max. Lift 25 ft 7.6 m
- Max. Head 85 ft 26 m
- Max. Pressure 37.7 psi 0 kPA
- Max. Solid Intake 2 in 51 mm
- Fuel Tank Capacity 1.45 Gal 5 L
Dimensions & Weights
- Overall Length 92 in 2337 mm
- Overall Width 53 in 1346 mm
- Overall Height 67 in 1702 mm
- Operating Weight 615 lb 279 kg
