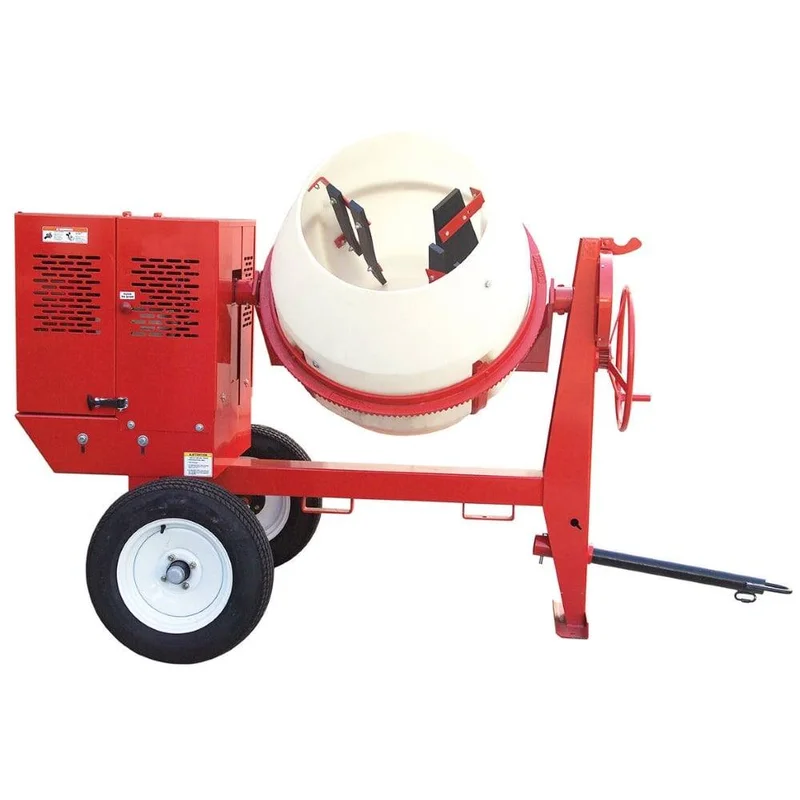

Multiquip MC12PH Poly Drum Concrete Mixer Honda GX340

Description

Multiquip MC12PH Poly Drum Concrete Mixer Honda GX340

Multiquip’s largest concrete mixer is ideal for most jobs. The 12 cubic foot EASYCLEAN™ polyethylene drum ends time consuming cleanout hassles. A few taps with a mallet and dried concrete falls right out. The durable construction, easy maintenance, and reliable design make them the right choice for the professional contractor.

Features:

12 cubic foot (339 Liters) 1.5 ~ 2 bag mixing capacity

• Equipped with a large 1 capacity, optimized for efficient production with a typical batch size of 1.5 to 2 bags.

Polyethylene EASYCLEAN™ drum

• Features a Polyethylene EASYCLEAN™ drum, designed for hassle-free cleanup and superior rust resistance.

Heavy-duty one piece cast iron ring gear

• Equipped with a rugged, one-piece cast iron ring gear that guarantees superior durability and reliable, long-term performance.

Honda GX340 Gasoline engine 10.7 horse power

• Powered by the robust Honda GX340 gasoline engine, delivering 10.7 horsepower for reliable, heavy-duty performance.

Maintenance free requires; no greasing of drum or pinion gear

• Features a maintenance-free design, requiring no greasing of the drum or pinion gear, significantly reducing service time.

Large multi-position dump wheel

• Features a large multi-position dump wheel for precise, controlled discharge of the mixture.

Axle springs and large B78x13 inch tires

• Equipped with suspension axle springs that reduce bounce and sway, plus large B78x13 inch tires for superior road and job site handling.

Rugged 14-gauge steel engine cover

• Constructed with heavy-duty 14-gauge steel, ensuring the engine cover is resilient and long-lasting.

Heavy duty retractable tow bar – HBC1 ball coupler or HLC1 loop

• Features a heavy-duty retractable tow bar for easy transport, with versatile coupling options: the HBC1 ball coupler or the HLC1 loop (lunette ring).

Unit Specifications

• Drive System V-Belt
• Dump Type Manual
• Discharge Height 23 in 58 mm
• Drum Type Polyethylene
• Tire Size B78x13
• Power Source 10.7HP Honda GX340

Drum Specifications

• Drum Capacity 12 cu. ft 339 L
• 1.5 ~2 bags
• Drum Opening 20 in 50.8 mm
• Drum Depth 35.5 in 90.1 mm
