Description

********NO LONGER AVAILABLE********

SETUP AND PREP FEES MAY APPLY

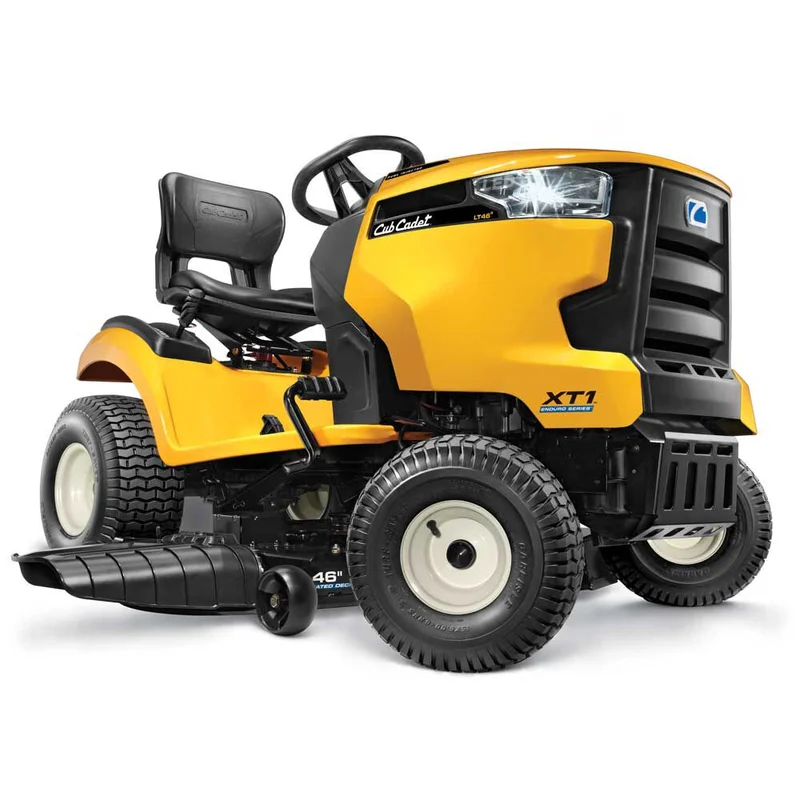

• The Cub Cadet XT1 LT46 EFI is powered by a Cub Cadet single cylinder 547cc engine equipped with EFI for 25% less fuel consumption, less maintenance, dependable starting, and easy off-season storage.
• 46-inch fabricated, 11-gauge, twin-blade deck with 12 cutting positions.
• Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
• 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
• Ideal for mowing 1.5 acres of mostly flat terrain and a few obstacles.

Engine

• Engine BrandCub: Cadet®
• Engine Model: EFI Single Cylinder Engine
• Engine Model Number: 9X90HUB
• Engine Displacement: 547cc
• Starter Type: Electric
• Fuel Tank Capacity: 2.5 gal. US (9.46 L)
• Cylinders: Single
• Engine Start: Push Button
• Engine Oil Capacity: 1.8 qt. US (1.7 L)
• Lubrication: Fully pressurized
• Charging System: 15 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Electronic
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Electronic Fuel Injection (EFI)

Battery

• Battery: 230 CCA
• Battery Type: Standard Lead Acid
• Battery Voltage: 12V

Drive System

• Transmission: Tuff Torq® K46
• Forward Speed; 5.5 MPH / 8.6 KMH
• Reverse Speed: 3 MPH / 4.8 KMH
• Rear Axle: 3/4″
• Drive System: Hydrostatic
• Transmission Control: Foot Pedal
• Transmission Housing: Aluminum
• Engine to Transmission: Heavy-duty belt
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 46 in
• Deck Wash: Yes
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Two
• Deck Lift:  Hand lever with spring-assist
• Cutting Height Range: 1″ – 4″
• Anti-Scalping: Four gauge wheels
• Deck Positions: 12

Warranty

• Warranty: 3-year unlimited hours
• Frame Warranty: 5-year unlimited hours
• Front Axle Warranty: 5-year unlimited hours
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: No

Chassis

• Frame: Robotically welded
• Turning Radius: 16″
• Bumper: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: Cast iron

Controls

• Cruise Contro: lYes
• Brake: Disc

Comfort

• Seat Type: 15″ high-back
• Armrests: No
• Seat Adjustment: Lever
• Floor Mats: Rubber

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 20″x 8″-8″
• Front Tires: 15″x 6″-6″
• Tire Tread: Turf Saver

Additional Specifications

• Mulch Kit: Available Separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13B9A1CN010

Specifications

• SeriesXT1® Enduro Series™

• AIR FILTER:937-05066 OR 490-200-C063
• OIL FILTER:951-12690 OR 490-201-C010
• FUEL FILTER:
• SPARK PLUG:951-10292A
• DECK BELT:954-05087A OR
• DRIVE BELT:954-05027B OR 490-501-C061
• BLADES:942-04244A OR 490-110-C131
• XTREME BLADES: 942-04290-X OR 490-110-C156
• IGNITION KEY:725-06779B OR 490-350-C002
