Description

********NO LONGER AVAILABLE********

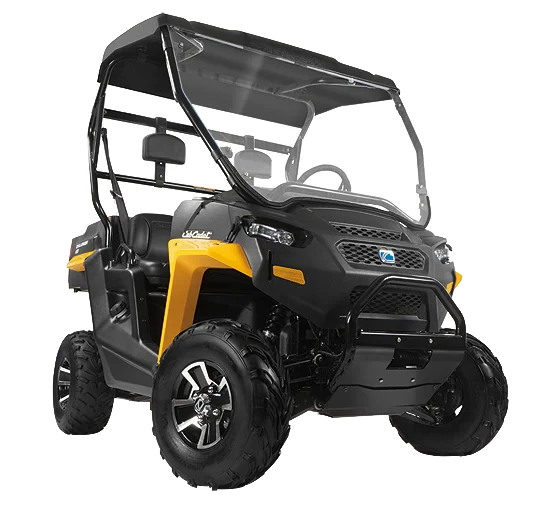

LX package includes standard full windshield, hard roof, aluminum alloy wheels with off-road tires and adjustable headrests.
Powerful 404cc OHV Subaru engine and a 500 lb. towing capacity helps complete any job. 50″ width fits in the bed of a standard pick up truck. Dent-resistant cargo bed with 350 lb. capacity, D-ring tiedowns and bed divider slots.

WARRANTY: 1-Year Limited Powertrain and Vehicle Warranty

Specifications

CAPABILITY:

Speed: Up to 25 mph

Minimum Ground Clearance: 5.5″

Cargo Bed Payload: 350 lbs.

Towing Capacity: 500 lbs.

COMFORT & CONTROL:

Headrests: Adjustable headrests included.

Seating: Adjustable Sports Style.

Display: Backlit LCD Digital Dash with Speedometer.

EXTERIOR:

Roof: Hard Roof (standard)

Windshield: Full windshield included

POWERTRAIN:

Fuel Efficiency: 30 MPG

Fuel Tank Capacity: 5.7 gal.

Air Cleaner: Canister with paper element

Rear Axle Housing: Die-cast aluminum

Transmission: Enclosed CVT

Engine Displacement: 404cc

Engine Type: Subaru EX40 Air Cooled

Drive System: 2WD

Torque: 19.9 ft.-lbs @ 4,000 rpm

Rear Differential: Manually lockable

Ignition: Magneto

Selector: Forward-Neutral-Reverse

Fuel System: Gas

Lubrication; Splash with chain carry

Transaxle: Schafer

WHEELS & SUSPENSION:

Wheels: Aluminum Alloy wheels with sealed, automotive-style bearings.

Front Tire Size: 21″ x 7″ x 10″

Front Suspension: Dual a-arm and 45-degree approach angle

Rear Tire Size: 22″ x 9″ x 10″

Suspension Front/Rear: Solid axle with high angle articulation for increase traction

Shocks: Heavy-duty coil

Travel: 6″ Front, 4.5″ Rear

Tire Type: Offroad/Trail

FRAME:

Bed Dimensions: 27″ x 37″ x 12″

Tailgate: Flip-down, latchable tailgate

Frame:

Front bumper included and e-coated steel frame with automotive-grade corossion protection

Cargo Bed: Dent-resistant, double-walled cargo bed with tie downs (accepts bed dividers)

Bed Lift: Hydraulic lift assist

ELECTRICAL:

Headlights: LED with low beam and high beams

DIMENSIONS & WEIGHTS:

Overall Length: 96″

Overall Height: 71″

Weight: 940 lbs.

Overall Width: 50″

Safety:

Speed Limiter: Reverse speed limiter (12 mph)

ROPS: Foot/lower leg retention, hip restraint and passenger assist handle

Seat Belts: 3 point seat belts with angle lockout
